機器概況

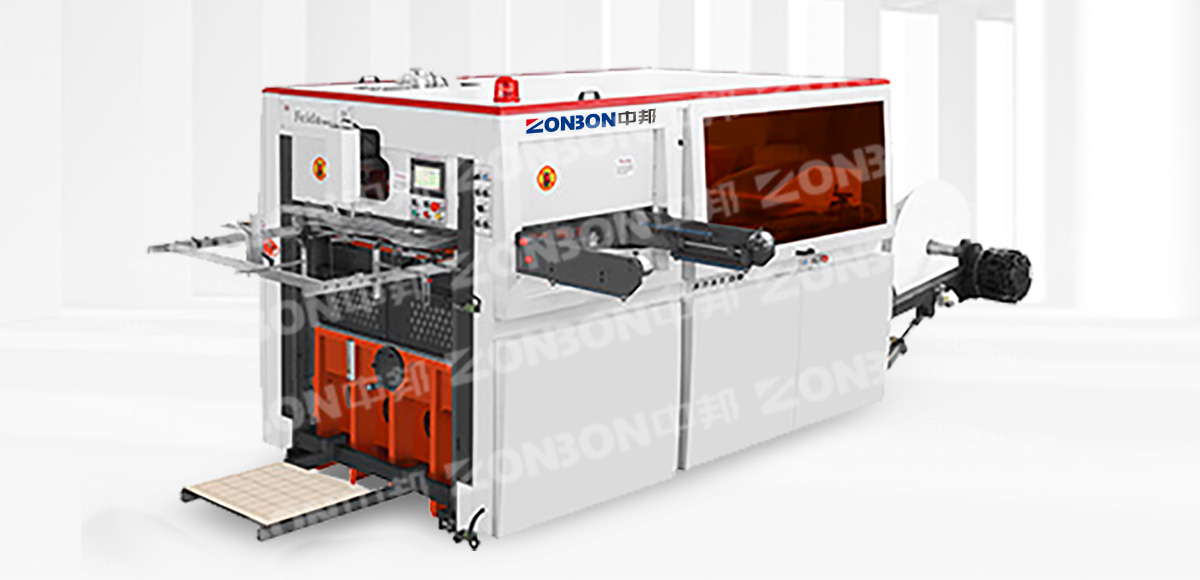

The ZB series fully automatic rolling and flattening cylinder die-cutting machine is based on international advanced technology, with high stability, high safety performance, and high precision of finished products. It is widely used for paper packaging such as paper boxes. It adopts a microcomputer, human-machine control interface, servo positioning, AC frequency converter, automatic counting, manual pneumatic locking plate, photoelectric correction deviation system, electromagnetic prompt, centralized oil lubrication, overload protection, and unique transmission device. This can ensure smooth operation of paper return and feeding, precise positioning, and correct paper retrieval. The key components and electrical appliances of the machine are imported brands. Such installation can keep the machine under stable pressure, accurate positioning, stable movement, safety and reliability.
產品規格
型號 | ZB-970x550(640) | ZB-1080x640 | ZB-1200x640 | ZB-1400x780 |
最大模切范圍 | 940x520mm(610) | 1050x610mm | 1160x610mm | 1350x750mm |
最大紙寬 | 950mm | 1060mm | 1180mm | 1380mm |
模切精度 | ±0.10-0.2mm | |||
適合紙張克重 | 120-400g/㎡ / 120-600g/㎡ | 120-600g/㎡ | ||
模切速度 | 100-180 times/min | 80-130 times/min | ||
氣壓要求 | 0.6Mpa | |||
用氣量 | 0.25m³/min | |||
最大模切壓力 | 150T/280T | 280T | ||
最大上料直徑 | 1600mm | |||
穩定運行功率 | 11KW | 11KW | 14KW | 14KW |
-
